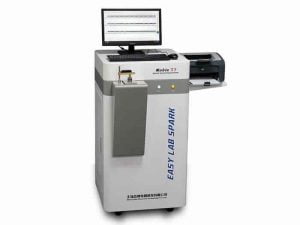

Noble T7 Optical Emission Spectrometer

Noble T7 Full Spectrum Optical Emission Spectrometer adopts the international standard of design and manufacturing technology. It uses the most advanced CMOS signal acquisition device from Japan Hamamatsu Co. Each CMOS can set the number of sparks separately. It adopts vacuum light chamber design and full digital excitation light source.. This CMOS Spectrometer is not only contain the feature of full spectrum of CCD spectrometer but also have the advantages of PMT spectrometer which has very low detection limit for nonmetallic elements. The design of the whole machine is reasonable. It also has many advantages such as easy operation, high accuracy test result, long-term stability etc.

Main Technical Parameters

Application FieldMetallurgy, foundry, machinery, scientific research, commodity inspection, automobile, petrochemical, shipbuilding, electric power, aviation, nuclear power, metal and nonferrous metal smelting, processing and recovery industry.
Analysis MatrixFe, Al, Cu, Zn, Ni, Mg, Pb etc.
Optical SystemPara-Runge-Roland Circular Full-Spectral vacuum optical system
Wavelength Range120~800nm
Grating Focal Length401mm
DetectorHigh performance CMOS array
Light Source TypeDigital light source. High energy precombustion technology.
Discharge Frequency100-1000Hz
Discharge CurrentMax 400A
Working PowerAC220V 50/60Hz 1200W
Dimension760*610*1130mm
Weight168kg
Analysis TimeAccording to the sample type, normally is about 20s.
Electrode TypeTungsten Spray Electrode
Analytical Gap4mm
Other FunctionsVacuum, temperature, software automatic control pressure, communication monitoring.

Main Technical Features

High Performance Optical SystemThe arc flame generated by the excitation of optical system is directly introduced into the vacuum optical chamber by the lenswhich realizes the optical path through and effectively reduces the loss of the optical path.
High precision CMOS detector can accurately measure the nonmetallic elements such as C, P, S, As, B, N and all kinds of metal elements.
The test results are accurate, reproducible and long-term stable.
Automatic Optical Path CalibrationAutomatic optical path calibration.Optical system automatic spectral line scanningto ensure the correctness of the receiving and eliminating the tedious peak scanning work.
The instrument automatically identifies a particular spectral line and compares it with the original storage line, determines the drift position, and finds out the current pixel position of the analytical line for measurement.
Design of Plugged LensThe vacuum optical system adopts unique incident window and vacuum isolationwhich can be operated in the working state of the vacuum system. The optical lens adopts a plugged lens structurewhich is convenient for daily cleaning and maintenance.
Vacuum Chamber IntegrationThe unique structure of the light chamber makes the volume of the vacuum chamber smallerand the vacuum pumping time is only 1 / 2  compared with the ordinary spectrometer.
The integrated design and highprecision processing of vacuum chambers ensure the vacuum status more durable.
Vacuum Anti-oil TechnologyMultistage isolation vacuum anti-oil technology adopts vacuum pressure differential valve to ensure the vacuum light chamber and vacuum complete isolation when the vacuum pump is not working.
The vacuum oil filter device is added in the middle to ensure that the vacuum pump oil does not enter the vacuum chamber and that the CMOS detector and optical elements work in a reliable environment.
Open Spark TableThe flexible sample clamp design of the open spark table is designed to meet the sample analysis for various shapes and sizes at the customer site.
The minimum analysis of the wire can reach 3mm using a small sample clamp .
Jet Electrode TechnologyUsing the most advanced spray electrode technology in the world and using tungsten electrode.Argon jet flow will be formed around the electrode under the excited state.So the excitation point will not be in contact with the outside air during the excitation processand the excitation accuracy will be improved.
By a unique argon gas design, greatly reduce the amount of argon gas consumption and save the customer’s cost.
Integrated Gas Path ModuleThe air path system adopts the free maintenance design of the gas path module instead of the solenoid valve and the flow meter. The self-blowing function of the electrode creates a good environment for the excitation.
Digital Excitation Light SourceDigital excitation light source adopts the most advanced plasma excitation light source in the world. The super stable energy is released in argon environment to stimulate the sample.
The full digital excitation pulse is used to ensure the ultra-high resolution and high stability output of the sample plasma.
The parameters of the light source can be adjusted arbitrarily to meet the excitation requirements of various materials.
High-speed Data AcquisitionThe instrument adopts high performance CMOS detectorand each CMOShas the function of collecting and analyzing the data. It can automatically monitor and control the operating state of the modules such as temperature, vacuum, argon pressure, light source, excitation chamber etc.
Ethernet Data TransmissionThe Ethernet card and TCP/IP protocol are used between the computer and the spectrometer to avoid the disadvantages of electromagnetic interference and optical fiber aging. At the same time, the computer and printer are completely externalwhich is convenient to upgrade and replace.
Remotely monitor the instrument status, multi-channel control system and monitor all instrument parameters.
Prefabricated Working CurveWith different materials and grades of the standard library, the factory prefabricated work curve before delivery which is convenient for installation and commissioning in order to timely production.
The analysis program will be different according to the metals and elements.The excitation and test parameter of the instrument has been adjusted well before delivery. According to the analysis program, the optimal test condition can be automatically selected.
The scope of analysis is attached to the specification and can be freely drawn or extended according to the standard sample supplied by the user.
Fast Analysis SpeedThe analysis speed is very fast. It only takes 20s for one test.
According to different analysis materials, by setting pre-burning time and measuring time, the instrument can achieve the best analysis effect with the shortest time.
Multi-matrix AnalysisThe optical path design adopts a compass structure.The detectors are arranged alternately up and down so that all the spectral lines are received. Even though the hardware facilities are not added, the multi – matrix analysis can be realized.
It’s easy to add matrix, material types and analytical elements without hardware cost according to production requirements.
Chinese-English Language Software SystemThe instrument operation software is completely compatible with Windows7/8/10 system.
The software is easy to operateeven if no spectrometer knowledge and operational experience.Only after simple knowledge of training can be used.

 1 )Random technical data and software

Drive and application software installation CD-ROM
User handbook
Daily maintenance page

2 )Training
During installation and commissioning, the installation engineerswill organize staff and maintenance personnel to receive training, normally 2-3 days. Through training, users will have a better understanding of the relevant technology of spectrometer analysis, and skillfully operate and maintain the instrument.
The seller will hold regular or free technical training courses. The training notice will be sent to the user in time, users decide whether to attend training according to own situation

3) After-sale service
3.1The warranty
 The warranty shall be subject to the contract;
 If not specified in the contract ,the warranty shall be implemented in accordance with the following terms:
 The warranty shall be 12 months from the time of instrument acceptance, or 12 months from the buyer’s receipt of the instrument.
 The general fragile parts (mouse, ordinary keyboard, etc.) are guaranteed for three months from the date of the factory.
 The warranty for external parts (PC, printer, stabilized power supply, etc.) is subject to the manufacturer’s regulations .
 The warranty of the rework parts is three months.
 Consumables (filter cotton, electrode brush, etc.) are not guaranteed.
 Instrument have the quality problem and affect the use, the warranty will be postponed.
3.2  During the warranty, the failure of the instrument under the normal use,the maintain is free of charge, However, the seller will charge the cost and maintenance fee due to the user’s wrong operation and the damage caused by the force majeure (war, earthquake, lightning, flood, etc.).
3.3 When the instrument is repaired, the seller will confirm the fault by telephone and solve the problem. If it needs to be solved at the scene, the engineers can rush to the scene within 48 hours.
3.4 Maintenance outside the warranty:
Exceeds the warranty, the seller will continue to provide maintenance services If need the scene service, the seller will charge the cost of spare parts and service charges.
3.5Spare parts and consumables supply: the seller will supply spare parts and consumables to the buyer with favorable price.

Technical Configuration

ItemIndex
Analysis MatrixFe, Al, Cu, Zn, Ni, Pb, Mg etc.
Analysis TimeAccording to the sample type, normally is 20s.
Optical SystemPara-Runge
Wavelength Range120~800nm
Working Power(220±20)V AC,(50±1)Hz,Single-phase power supply with protective grounding.
Working Temperature(10~30)℃
Storage Temperature(0~45)℃
Working Humidity20%~80%
Argon Gas Purity Requirement99.999%
Argon Gas Inlet Pressure0.5MPa
Argon Gas Flow MeterExcitation flow rate 3.5L/min,Maintain flow rate 0.4L/min,Standby flow rate 0.1L/min.
DimensionL760mm*W610mm*H1130mm
Weight168kg
Maximum Excitation Power400VA
Standby Average Power50VA
Light Source TypePulse synthesis all digital light source (programmable pulse all digital light source)
Discharge FrequencyMax 1000 Hz
Discharge CurrentMax 400A
Ignition Pulse1~14kV
Spark Excitation Pulse20~230V
Arc Excitation pulse20~60V
Spark Table Hole Diameter12mm
