CS995 Carbon Sulfur Analyzer

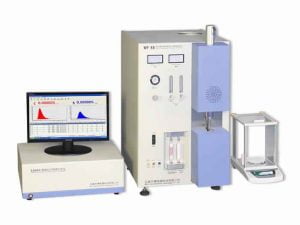

CS995 Type High-frequency Infrared Carbon & Sulfur Analyzer compatible applying with WF-T88 Type High frequency automatic inductive combustion furnace, can fleetly and exactly measure the carbon and sulfur in steel, iron, alloy, nonferrous metals, cement, ore and other materials. This equipment is a high-tech products integrate light, motor, electronic, computer and analysis technology, with features of wide measuring scope, strong anti interference, multiple function, easy to operate, accurate and reliable analysis result.

Infrared Detection Unit

Circuit Design:The modularized design with double CPU for the whole frame is divided into the upper and lower levels while the electronic circuits are highly integrated stably and reliably; in the meantime the multilevel hidden-type isolated circuit is employed so that it is free from HF interference.
Power:The linear close-coupled modular power block ensures stable output without fault.
Light source:The  tailor-made  new  model  platinum  infrared  light  source  has  lasting caloricity and efficient spectral property.
Analysis cell:The gilded carbon & sulfur analysis cell is fit with the high precision TSC infrared detector (10-11); it is also possible to have the double-carbon cell or the double- carbon & double-sulfur cell fit out at the client’s request.
Motor:The special-purpose aviation modulation motor is applied with satisfactory thermal stability whose life expectancy exceeds 100,000 hours.

High-frequency combustion system

Radio circuit:The design of high-duty radio circuit and the application of 2.2KVA HF pliotron. frequency : 20MHz
 Military-purpose ceramic vacuum tubes and ceramic vacuum capacitors.
 HF control circuit: It is used for automatic detection of the electromagnetic valve, the elevation or descent of cylinder and the performance of HF unit.
 Automatic overtime/overflow alarming system enables the HF furnace to work under normal condition.
 The optional current/voltage/power regulator for furnace temperature control: It is applicable to samples of various materials.

Analytical gas path system

Gas path:The high precision flow controller ensures the stability of gas flow as well the gas intake system (such as electromagnetic valves, unions, cylinder hoists) for automatic leakage detection.
 Dual standard correction for solid and gas
De-dusting unit:The combustion head self-cleaning device effective for reducing the influence of dust for the result of analysis; ash removing system for the inlet.
 0.4 μm submicron metal filter secures thorough separation of dust from gas and can be used for a long time with no need of the ultrasonic cleaner.

operational software

Operational software:Adopt Deliph software compiler , WINDOWS XP english operating software.
Analysis channel:Providing  channel  management  features,  the  carbon  and  sulfur channels are free to increase, delete and edit, no limit.
Analysis function:Analysis of the dynamic data, sampling every 20 times, improving the analysis sensitivity and analysis accuracy, providing sample management features, it can edit the sample name and logo, also can increase and delete samples, the software provides a user management system, the administrator setting different user permissions.
Display function:The Carbon sulfur has a curve respectively,
Data processing function:Adopt ACCESS data pool store the analysis results, can store all data and curve; Query the analysis results optionally, query according to the time, sample name, logo and operator. Provide  some  function  as  data  storage,  blank  deduction,  setting parameter, choosing channel, statistics, and curve Compare etc. In the  software can  create the work  curve of carbon  and sulfur, realizing the curve fitting。
Printing function:Print mode is diversification, Provide two print modes of laboratory and testing, also can design printing formats
self-diagnose function:System  diagnosis  function,can  test  furnace  head  and  the  gas chamber sealing by the software.



Spare parts list

No.NameSpecificationUnitQuantityNote
1Relieve Valve pcs1Including special connector
2Tungsten Fluxing MediumLow blank of C & Sbottle/kg1
3Pure Iron Fluxing MediumLow blank of C & Sbottle2
4Quartz Combustion Tube pcs2
5De-dusting Tube pcs2
6Copper Crucible Holder pcs1
7Quartz Crucible Holder pcs2
8 Ceramic Crucible1000pcs/cartoncarton1
9Stainless Steel Round Brush pcs3
10Steel Wire Brush pcs1
11Forceps pcs1
12Sampling SpoonBig, Middle, SmallSet1Stainless Steel
13Fluxing Medium Spoon pcs1
14Tool set1
15PVC pipe4mm*6mmMeter10
16 Silicon RingRedpcs2
17O-Ring11mm*2.5mmpcs4
18O-Ring37mm*3.1mmpcs4
19Vacuum Silicone Grease bottle1
20Fuse10Apcs4
21Fuse32Apcs4
22Multi-socket10Apcs1
23Desiccant125gbottle1
24CO2 Absorbent125gbottle1
25USB LineSpecialpcs1
26Optical FiberSpecialpcs1
27Balance Line pcs1
28Power Line pcs1
29Discharging Dust Tubesilicon rubberpcs1
30Y type triplet pcs1
31Mouse Pad pcs2
Measure Range
Carbon:w(C) 0.0005%-6.0000% (can be extended to 99.999%)
Sulfurw(C) 0.0005%-0.5000% (can be extended to 99.999%)
Sample weightStandard 0.5g
Analysis Error
Ignition Circuit
Carbonaccord with ISO9556 standard
Sulfuraccord with ISO4935 standard
Analysis PrecisionCarbon: RSD<1% ; Sulfur: RSD <1.5%
Analysis poolCarbon: one pool ;Sulfur: one pool
Time of analysis25 to 60 seconds, could be adjusted. Around 35 seconds usually
Sensitivity(The minimum readings)C/s 0.1ppm
Electronic scalePrecision of read: 0.0001g
Working EnvironmentRoom temp: 10 to 30 degree C,relative Humidity less than 75%
